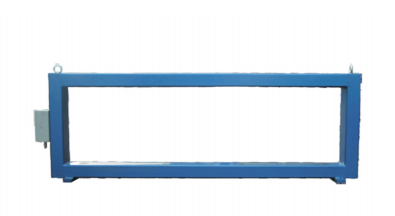

DK-ZD Automatic Edge Finding Frame

Function: DK-ZD automatic edge finding frame is mainly carried out on various strip edges.The position controller controls the positivity of the edge-finding motor through electrical signals,Reverse and stop states. When detecting the edge of the strip the sensor is electric,When the gas signal reaches 12mA, the edge-finding motor will stop edge-finding,The system enters the normal correction state.

Key words:

DK-ZD Automatic Edge Finding Frame

Key words:

DK-ZD Automatic Edge Finding Frame

Classification:

Products

Product Consulting:

0086-19591686205

Inquiry

Product description

Function:

DK-ZD automatic edge finding frame is mainly carried out on various strip edges.The position controller controls the positivity of the edge-finding motor through electrical signals,Reverse and stop states. When detecting the edge of the strip the sensor is electric,When the gas signal reaches 12mA, the edge-finding motor will stop edge-finding,The system enters the normal correction state.

Parameters:

(1) Model: DK-ZD-200

Overall dimensions: 482

Effective trip: 200

Model: DK-FS/5

(2) Model: DK-ZD-300

Overall dimensions: 582

Effective trip: 300

Model: DK-FS/5

(3) Model: DK-ZD-400

Overall dimensions: 682

Effective trip: 400
