DK GPS11-1 Correction CCD Sensor

Function: Output a single material edge signal, center position signal, or 2 materials 4 edge signals; LED linear indicator, easy to install and adjust at the work site; Dual interface, including power supply and signal line, RS485 communication; Optional: Infrared LED light source, better resistance to external light source interference. Structural principle: GPS11-1 Width/deviation correction sensor, using high-resolution line scan CD, including high-performance MCU, directly output the target edge position. Rear panel LED linear indicator, easy to adjust in the work site; Dual interface, including power supply and signal line, RS485 communication line, can facilitate the product and various controllers to connect GPS11-1 with strip type infrared LED light source, can effectively eliminate the impact of environmental light, product design and manufacturing with reference to international similar products, product quality in line with industrial production environment requirements. Can be widely used in metallurgy, rubber, packaging and other industries in the edge correction, alignment and width measurement. Parameters: MODEL:GPS11-1E GPS11-1C GPS11-1M detecting parameter detection mode:video detection/edge algorithm processing resolution ratio:2048 response time：5MS detection range:200mm~1000mm detection precision：+0.5mm~+1.0mm working distance：400mm~2000mm Electrical performance working voltage：+24 power dissipation：＜300mA work pattern:analog output：1：0-5VDC2:0-10VDC communication interface：RS485PORT environment temperature：-10℃~+50℃ ambient humidity：<80% boundary dimension：140(L)*72(W)*72(H)

Key words:

DK GPS11-1 Correction CCD Sensor

Key words:

DK GPS11-1 Correction CCD Sensor

Classification:

Products

Product Consulting:

0086-19591686205

Inquiry

Product description

Product feature:

Output a single material edge signal, center position signal, or 2 materials 4 edge signals;

LED linear indicator, easy to install and adjust at the work site;

Dual interface, including power supply and signal line, RS485 communication; Optional: Infrared LED light source, better resistance to external light source interference.

Structural principle:

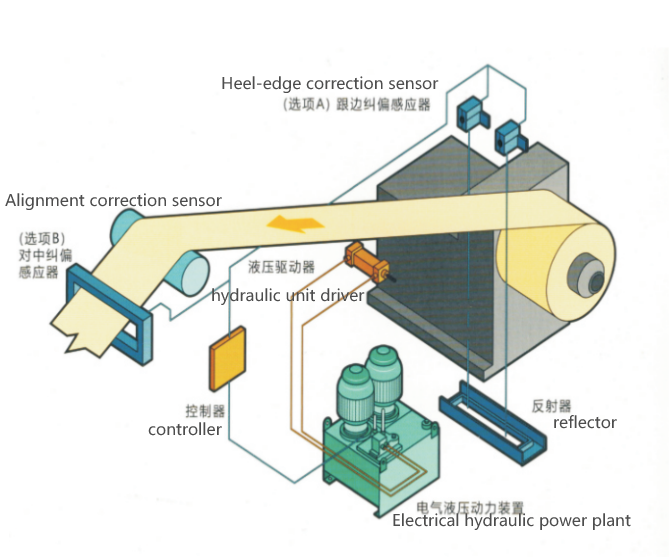

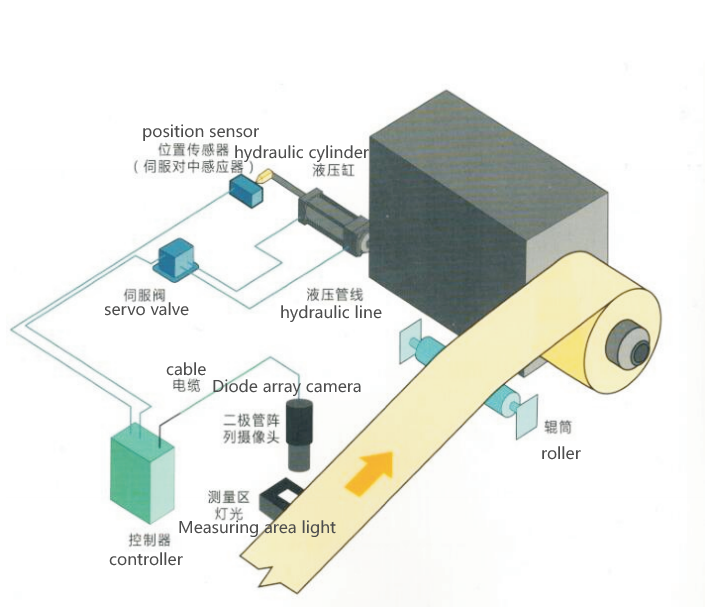

GPS11-1 Width/deviation correction sensor, using high-resolution line scan CD, including high-performance MCU, directly output the target edge position. Rear panel LED linear indicator, easy to adjust in the work site; Dual interface, including power supply and signal line, RS485 communication line, can facilitate the product and various controllers to connect GPS11-1 with strip type infrared LED light source, can effectively eliminate the impact of environmental light, product design and manufacturing with reference to international similar products, product quality in line with industrial production environment requirements. Can be widely used in metallurgy, rubber, packaging and other industries in the edge correction, alignment and width measurement.

Parameters:

MODEL:GPS11-1E GPS11-1C GPS11-1M

detecting parameter
