Pulse energy storage capacitor XHCC-100/1, XHCC-40/6

The pulse energy storage capacitor adopts imported film and non-inductive winding structure. It has good self-healing and explosion-proof performance. It has the characteristics of reliable structure, no leakage, no pollution, moisture-proof, fire-proof, long life, small size and light weight.

Key words:

Products

impulse

discharge

and

energy

storage

voltage

capacitor

40kv

pulse

adopts

small

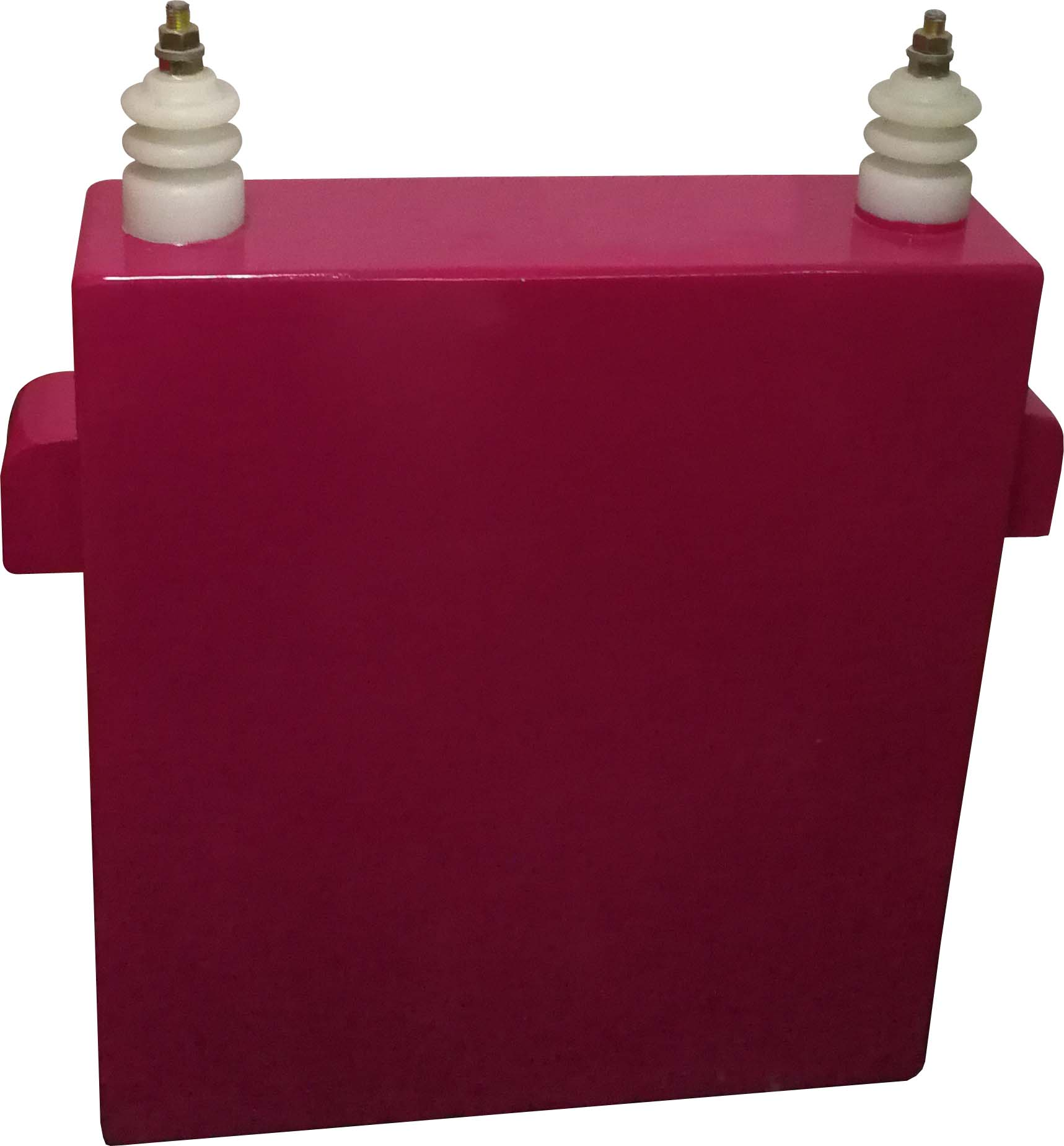

Pulse energy storage capacitor XHCC-100/1, XHCC-40/6

Pulse energy storage capacitor

energy storag

XHCC-100/1, XHCC-40/6

Key words:

Pulse energy storage capacitor XHCC-100/1, XHCC-40/6

Classification:

Products

Product Consulting:

0086-19591686205

Inquiry

Product description

Product Overview
The pulse energy storage capacitor adopts imported film and non-inductive winding structure. It has good self-healing and explosion-proof performance. It has the characteristics of reliable structure, no leakage, no pollution, moisture-proof, fire-proof, long life, small size and light weight.

Product Features
☆ Mainly used for rough measurement of all high-resistance faults of various cables.
☆ Mainly used for precise positioning of all types of faults of various cables.

☆ The pulse energy storage capacitor adopts special high-voltage technology, with small size, safe and reliable.

Technical Parameters
★ Capacity voltage: 1μF (1±10%)/100kV
6μF (1±10%)/40kV
★ Loss quality: not more than 0.006 (1kHz)
★ Insulation resistance: RC greater than 7500MΩ·uF
★ Inter-pole withstand voltage: 1.1～1.5Un·2s Pole to shell: 2Un·2s
★ Ambient temperature: -25～40℃ Altitude: 2000m

Model List

Sr.No	Model	Rated Capacity	Rated Voltage	Inter-electrode withstand Voltage	Application
01	YH55-2000/3	2000uF	3kV	3.6kV	Impulse discharge
02	YH55-2500/5	2500uF	5kV	5.5kV	Impulse discharge
03	YH55-100/6.5	100uF	6.5kV	7.5kV	Impulse discharge
04	YH55-200/6.5	200uF	6.5kV	7.5 kV	Impulse discharge
05	YH55-500/6.5	500uF	6.5kV	7.5 kV	Impulse discharge
06	YH55-8/15	8uF	15kV	17.5 kV	Impulse discharge
07	YH55-15/8*2	8uF	15kV	17.5 kV	Impulse discharge
08	YH55-2/30	2uF	30kV	34.5 kV	Impulse discharge
09	YH55-4/30	4uF	30kV	34.5 kV	Impulse discharge
10	YH55-2/40	2uF	40kV	45 kV	vImpulse discharge
11	YH55-4/40	4uF	40kV	45 kV	Impulse discharge
12	YH55-6/40	6uF	40kV	45 kV	Impulse discharge
13	YH55-1/100	1uF	100kV	110 kV	Impulse discharge
