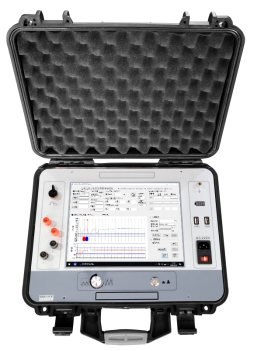

XHDL-51X Cable Reel Quality Analyzer

Key words:

and

cable

test

meters

measurement

ohms

accuracy

operation

method

power

milliohms

high-speed

control

length

testing

XHDL-51X Cable Reel Quality Analyzer

XHDL-51X

Cable Reel Quality Analyzer

Key words:

XHDL-51X Cable Reel Quality Analyzer

Classification:

Products

Product Consulting:

0086-19591686205

Inquiry

Product description

Product Overview
The cable quality analyzer primarily tests wire and cable length, conductor resistance, and temperature and humidity. It analyzes and evaluates the material, cross-sectional area, length, and electrical pulse propagation velocity of the wires and cables, verifying whether the cables meet specified requirements. It utilizes an industrial control all-in-one computer with a touchscreen display, internal high-speed CPU control, and high-speed AD sampling. AI automatically analyzes test results and generates reports. It features high measurement accuracy, convenient operation, a high degree of intelligence, and excellent repeatability. It plays a key role in material testing for the State Grid and quality control for wire and cable at various wire and cable construction sites. It is a nemesis for wire and cable manufacturers.

Product Features
★ 12.1-inch industrial-grade computer control with touchscreen operation;
★ High-speed CPU and AD chip ensure measurement accuracy meets standard requirements;
★ Capable of measuring cable conductor resistance, propagation velocity, and cable length;
★ Automatic and manual test functions;
★ Cable resistivity and cross-sectional area estimation functions;
★ AI-powered automatic test report generation;
★ Standard USB communication interface;
★ Built-in high-capacity lithium polymer battery for convenient operation in various test scenarios;
★ User-friendly interface, simple operation, and military-grade quality.

Technical Parameters

Project	Technical indicators and parameters	Remarks
Test current	Less than 20mA, 40mA, 200mA, 1A, 5A, 10A, AUTO
Test Range	100 ohms to 50 kiloohms, 1 ohm to 300 ohms, 100 milliohms to 50 ohms
Test Range	10 milliohms to 10 ohms, 5 milliohms to 4 ohms, 0.5 milliohms to 0.2 ohms
Resistance Accuracy	Soil (0.2% + 2 digits)
Resolution	0.1 microohms
Test Voltage	175V/350V
Sampling Frequency	400MHz+
Measurement Method	Open circuit measurement/Short circuit measurement
Measurement Range	5 to 100 meters, 100 to 500 meters
	500～1000 meters, 1000～2000 meters
	2000 to 4000 meters, 4000 to 8000 meters
Length Accuracy	±（0.2% of L + 1 meter）
Resolution	0.1 meters
Cross-sectional Area Accuracy	±0.5%
Cable Type	Power cable, coaxial cable, 2-core or more parallel or twisted cable
Display	12.1-inch touch all-in-one machine
Testing Method	Automatic testing / Manual testing
Calibration Method	Speed calibration
Data Storage	1000 groups
Communication Method	RS232/USB
Operating Environment	Environmental temperature: -10℃～50℃ Relative humidity: <90%RH
Power Supply	Internal 16.8VDC-5.2AH lithium battery power supply
Power Supply	Charging AC110V to 240V, 50Hz/60Hz
Test Lead Length	Standard 5.0 meters
Maximum Power Consumption	45W
Form Factor	430×380×220mm
Weight	Host 15kg
