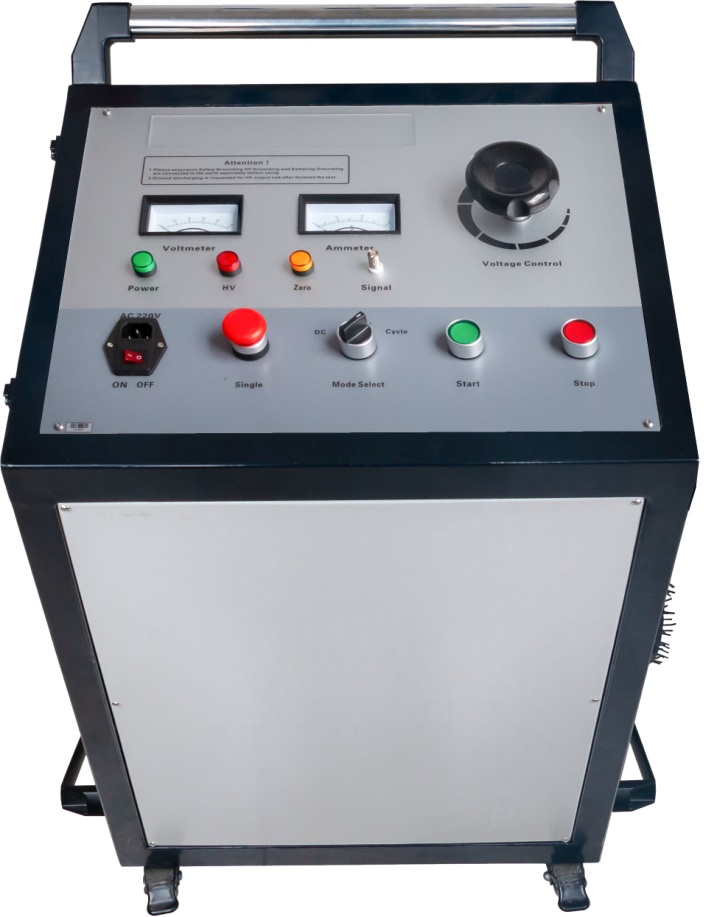

XHHV535-4T Cart-type High Voltage Pulse Generator

The cart-type high-voltage pulse generator complies with DL/T846-2016 "General Technical Conditions for High Voltage Test Equipment" and DL/T474-2017 "Guidelines for the Implementation of Field Insulation Tests". It is designed for low and high voltage cable fault testing and supports impulse discharge and withstand voltage tests. The equipment integrates a DC high-voltage source, energy storage capacitor, discharge ball device, automatic discharge device and cable fault tester sampling module to solve the pain points of traditional devices in terms of ease of use, portability, safety and reliability. It adopts high-precision, high-stability special components and high-frequency high-voltage technology, with a simple structure; it retains the DC high-voltage generation habits of traditional transformers + operating boxes, integrates micro-reliable circuits, and is user-friendly. It has automatic timing impact, manual impact, and withstand voltage functions, which are safe, reliable, and visually intuitive. It is the most convenient cart-type DC impact high-voltage equipment in China and an ideal tool for power cable fault detection.

Key words:

XHHV535-4T Cart-type High Voltage Pulse Generator

Cart-type High Voltage Pulse Generator

Generator

equipment

high-voltage

cart-type

power

voltage

Key words:

XHHV535-4T Cart-type High Voltage Pulse Generator

Classification:

Products

Product Consulting:

0086-19591686205

Inquiry

Product description

Product Overview

The equipment integrates a DC high-voltage source, energy storage capacitor, discharge ball device, automatic discharge device and cable fault tester sampling module to solve the pain points of traditional devices in terms of ease of use, portability, safety and reliability. It adopts high-precision, high-stability special components and high-frequency high-voltage technology, with a simple structure; it retains the DC high-voltage generation habits of traditional transformers + operating boxes, integrates micro-reliable circuits, and is user-friendly. It has automatic timing impact, manual impact, and withstand voltage functions, which are safe, reliable, and visually intuitive. It is the most convenient cart-type DC impact high-voltage equipment in China and an ideal tool for power cable fault detection.

Product Features
★ With over-current, over-voltage, over-heating automatic protection function;
★ With current and voltage dual 1.5-level pointer meter display, intuitive and clear; whether the fault point is fully discharged
is clear at a glance, and the discharge process is reflected in real time;
★ With zero-position start protection, it is safer and more reliable;
★ High-voltage pulse output is uniform and controllable;
★ High-voltage side voltage measurement, real-time and accurate;
★ Unique high-voltage measurement design, when stopped, it will automatically discharge the internal capacitor of the equipment;
★ The discharge time can be selected in two modes: timing and manual;
★ With DC withstand voltage function;
★ High-precision test cable fault sampling waveform module is installed inside;
★ Humanized design trolley for easy movement;

Technical parameters
★ Impact high voltage: 0~35kV optional
★ High-voltage voltage division: voltage accuracy 2.5 level
★ Built-in capacitor: 4μF
★ Output voltage polarity: negative polarity
★ Discharge power: 2550J
★ Impact time: automatic impact for about 5 seconds, manual impact for any control time
★ Impact power: 2000W
★ Overcurrent protection: 14A (more than 3 seconds)
★ Volume: 534Lmm×444Wmm×805Hmm
★ Weight: not more than 130kg
★ Working power: AC 220V±10% 50Hz±2Hz
★ Ambient temperature: -20～+60℃
