XHHV535-2TS High Voltage Pulse Generator

XHHV535-2TS

High Voltage Pulse Generator

Key words:

XHHV535-2TS High Voltage Pulse Generator

Classification:

Products

Product Consulting:

0086-19591686205

Inquiry

Product description

Product Overview

This high-voltage pulse generator is a high-end experimental instrument that complies with the DL/T846-2016 and DL/T474-2017 industry standards. It is mainly used for impulse discharge and withstand voltage tests in low and high voltage cable fault tests. It integrates multiple components such as DC high-voltage source, energy storage capacitor, and discharge ball device, and adopts a cart-type design, which optimizes the portability and safety of traditional equipment; it is equipped with high-precision, high-stability high-voltage electronic components and high-frequency and high-voltage technology, while retaining traditional operating habits, it has a humanized design (including automatic timing impact, manual impact, and withstand voltage functions), and the operation is intuitive and safe. It is the most convenient cart-type DC impact high-voltage equipment in China and an ideal tool for power cable fault detection.

Product Features
★ High-voltage pulse output is uniform and controllable;
★ It has dual 1.5-level pointer display for current and voltage, which is intuitive and clear, and the impact discharge process is clear at a glance;
★ High-voltage side voltage measurement, real-time and accurate;
★ It has zero-position start protection function, safe and reliable;
★ It has three-speed voltage range and capacitance switching function;
★ Unique high-voltage measurement design, when stopped, it will automatically discharge the internal capacitance of the equipment;
★ The discharge time can choose two modes: timing and manual;
★ It has DC withstand voltage function;
★ A high-precision test cable fault sampling waveform module is installed inside;

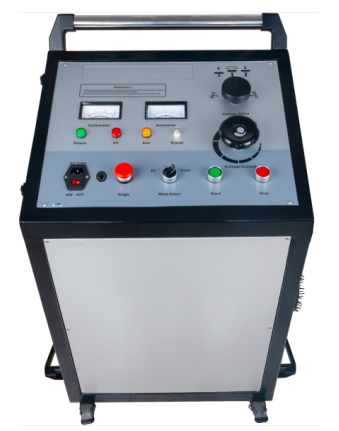

★ Humanized design trolley for easy movement;

Technical parameters
★ Impact high voltage: 0~32kV, 0~16kV, 0~8kV three-speed adjustment
★ High-voltage side current: 0~60mA
★ High-voltage accuracy: 1.5 level
★ Built-in capacitor: 2μF/32kV, 8μF/16kV, 32μF/8kV three-speed adjustment
★ Discharge energy: 1024J
★ Output voltage polarity: negative polarity
★ Impact time: automatic impact for about 7 seconds, manual impact for any control time
★ Overcurrent protection: 9A (greater than 5S) low voltage side
★ Overtemperature protection: 105℃
★ Maximum power: 2000W
★ Volume: 740Lmm×520Wmm×880Hmm
★ Weight: not more than 120kg
★ Working power supply: AC 220V±10% 50Hz±2Hz
★ Ambient temperature: -25～+65℃
