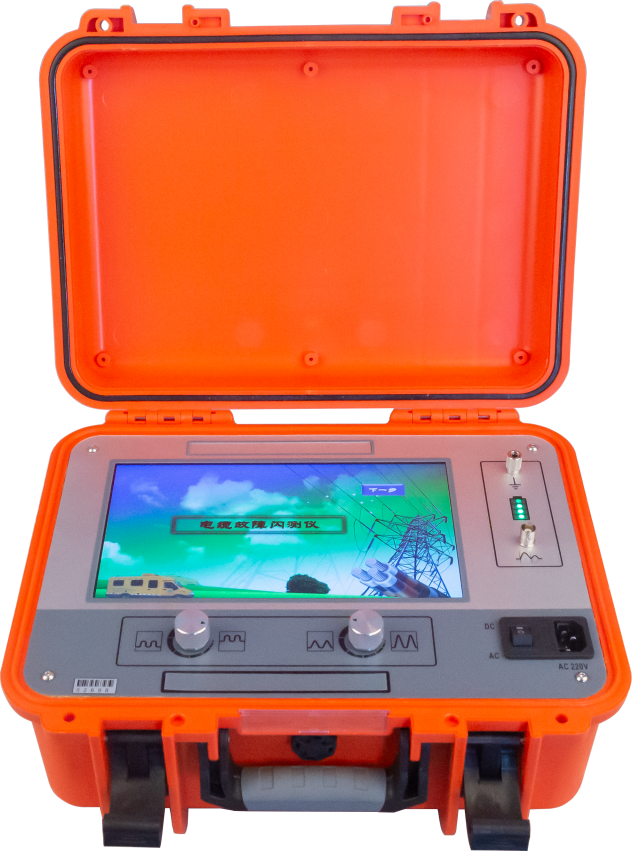

XHGG501D Cable Fault Tester

The cable fault tester is a special instrument designed for power cable fault testing. It is easy to operate (touch-type software interface + single-chip centralized control), built-in large-capacity lithium battery, stable and portable. It uses modern electronic technology to achieve signal filtering, acquisition, processing and graphic analysis, supports fault distance, length, speed measurement and resistance detection, and is suitable for low-resistance, short-circuit, open-circuit and high-resistance (leakage/flashover) fault testing of various types of cables such as power cables, coaxial cables, street light cables, and underground wires. The technical parameters meet the requirements of DL/T 849.1 and JJF1042 standards.

Key words:

Products

and

fault

cables

XHGG501D Cable Fault Tester

Cable Fault Tester

XHGG501D

tester

power

cable

Key words:

XHGG501D Cable Fault Tester

Classification:

Products

Product Consulting:

0086-19591686205

Inquiry

Product description

1.Product Overview
The cable fault tester is a special instrument designed for power cable fault testing. It is easy to operate (touch-type software interface + single-chip centralized control), built-in large-capacity lithium battery, stable and portable. It uses modern electronic technology to achieve signal filtering, acquisition, processing and graphic analysis, supports fault distance, length, speed measurement and resistance detection, and is suitable for low-resistance, short-circuit, open-circuit and high-resistance (leakage/flashover) fault testing of various types of cables such as power cables, coaxial cables, street light cables, and underground wires. The technical parameters meet the requirements of DL/T 849.1 and JJF1042 standards.

2.Product Features
• Industrial-grade 10-inch LCD touch screen;
• Single-chip centralized control, touch operation mode, strong anti-interference ability;
• With distance measurement, speed measurement, resistance measurement and other functions;
• Fully automatic continuous sampling, waveform capture is timely and accurate;
• With low-voltage pulse sampling method and flashover sampling method;
• Built-in large-capacity battery pack, easy to use;
• Adopt protective chassis, not less than IP54.

3.Technical parameters
Sampling frequency: 100MHz;
• Low voltage pulse amplitude: 35V;
• Pulse width: 0.2uS/2uS;
• Minimum resolution 1.0m;
• Test blind area: ≤35m;
• Ranging range: ≥16km;
• Measurement error: ≤±(0.5%×L+1m), L is the cable length;
• Power supply: Charging AC110V～240V, 50Hz/60Hz;
Built-in 10400mAH lithium battery for power supply;
• Working conditions: -20～+65℃, relative humidity ≤90%;
• Volume: 358L×284W×168H
• Weight: 4.6kg
